Bench 5

Powder

Measure every powder charge to the same verified weight. This is the main control point for velocity.

← Bench 4 — Priming Bench 6 — Seating →
Every bench matters. Basics returns the work to the SAAMI baseline. · Control and Tune add measurement depth when the work calls for it.
At the bench
See the process in action
Bench 5
VIDEO COMING SOON
Powder charging walkthrough — trickler setup, scale zeroing, and charge weight verification
← Bench 4 — Priming
Bench 6 — Seating →
Bench 5 Safety
Powder
Read before you begin
SIGMA8 does not provide reloading data. It is the shooter's responsibility to source powder charge weights from trusted published data as described below. Charging is the most critical step in the reloading process; if done incorrectly, it can damage your rifle and cause bodily harm or death. SIGMA8 assumes no responsibility for the powder charge weights a shooter chooses to use.
!
Use verified rifle load data

Start from a trusted reloading manual or powder/bullet manufacturer's published rifle data for your cartridge, bullet, and powder. Do not build a charge from memory, forum advice, or a similar cartridge. Stay inside published charge weights and record the source before charging cases.

Note Reloading manual or equivalent source published by your bullet manufacturer
!
Verify charged cases before seating

A rifle case charged with appropriate rifle powder should have a visible and repeatable fill level. Before any bullet is seated, confirm each charged case matches the intended charge and looks consistent with the rest of the batch. If a case looks unusually high, unusually low, empty, or different, stop, dump it, and re-weigh the charge.

Note Charged cases + scale
Pressure signs are reviewed after firing. See the Pressure tab for L1-L4 behavior.
Bench 5 Basics
Powder
What you're doing and why
Bench 5 is where powder goes into the prepared case. Confirm your scale, set up your powder tool, charge the cases, and check the batch before any bullets are seated.

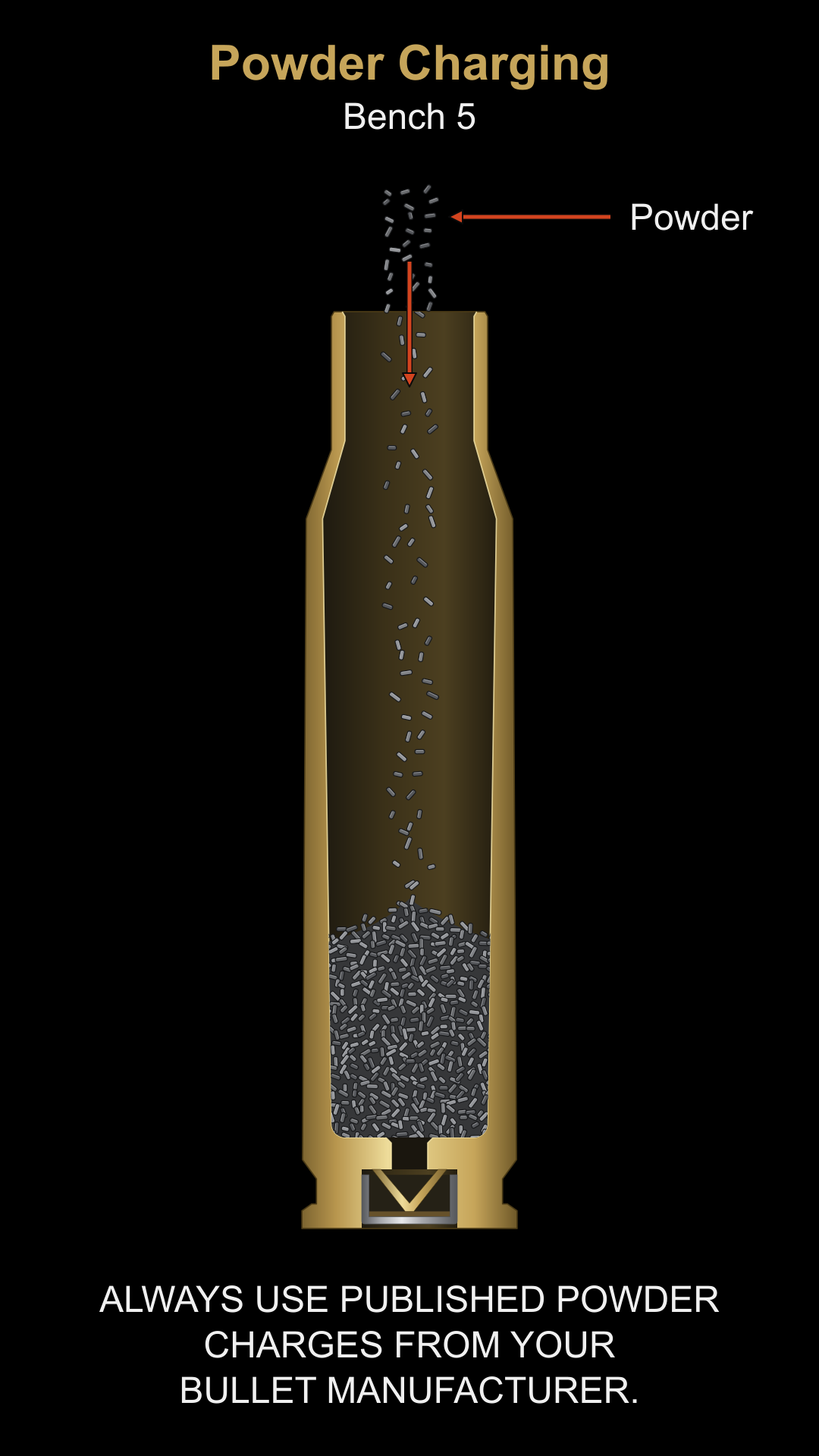

Bench 5 powder charging illustration.
1
Prepare the scale

Before charging cases, warm up your digital scale and calibrate it using the manufacturer's recommended method. After calibration, zero the scale before weighing powder. A scale that is not warmed up, calibrated, and zeroed before the session can drift and give you charge weights you cannot trust.

You'll need Digital powder scale + calibration weights
2
Set up the powder tool

Set up the powder measure, trickler, or dispenser for the charge you intend to load. Throw and weigh a few charges before filling cases so the tool and scale are working together correctly.

You'll need Powder measure, trickler, or dispenser + scale
3
Charge and check the cases

Charge the cases using a consistent workflow. Keep cases organized so none are skipped or charged twice. Before moving to seating, look across the batch. Powder levels should appear consistent for the same case, powder, and charge weight.

You'll need Loading block or organized case tray
Bench 5 Control
Powder
What you're controlling
Bench 5 controls charge weight. Powder charge is the primary velocity variable in Qual8 V1, so the job is to choose one verified target weight, hold it consistently across the batch, and record the powder identity and source data behind it.
C1
Charge Weight
Hold one target charge

Your target charge weight comes from verified rifle load data. Record the exact charge weight you are loading, not a loose range. During the batch, each charge should be weighed or verified against that target before it goes into the case. If a charge is off target, dump it and re-throw or re-trickle it.

You'll need Verified load data + digital powder scale
C2
Powder Identity
Record powder type and lot

Powder brand, powder type, and lot number are part of the recipe record. Powder can vary from lot to lot, so a lot change should be treated as a recorded batch change. Do not assume a new lot is identical to the previous one just because the label is the same.

You'll need Powder container lot number
C3
Scale Discipline
Trust the number only after the scale is proven

Sigma8 recommends a modern digital scale for precision ammunition because the powder charge is the main velocity control. A balance beam scale can be used successfully, but it is slower and depends heavily on the shooter maintaining focus across many repeated charges. Whatever scale is used, the number only matters if the scale has been calibrated, zeroed, and checked during the session.

You'll need Digital scale + check weights
Bench 5 Tune
Powder
Tune doctrine
Charge weight is the primary Qual8 V1 tune variable for velocity. Once the rifle load data, powder lot, scale, and charging process are controlled, small charge-weight changes can be tested to see how the rifle responds in velocity, ES, SD, and group behavior.
T1
Tune velocity with charge weight

Increasing powder charge generally increases velocity, but the response is not always perfectly linear. During a charge-weight test, the tuning process can reveal nodes where velocity stabilizes across a small window of powder charge instead of changing sharply with every increment. Qual8 maps charge weight against velocity and group results so the shooter can see how the rifle responds instead of guessing from one group.

T2
Change one charge step at a time

Only test charge weights that stay inside verified published rifle load data. Move in deliberate increments and keep all other variables fixed: brass lot, primer lot, seating depth, bullet, powder type, and rifle. If pressure signs appear, stop. The purpose of a charge-weight test is to find a stable response, not to chase the hottest load.

Bench 5 Pressure
Powder

Pressure Signs

Pressure signs
SIGMA8 does not provide reloading data. Always use trusted published rifle load data for your exact cartridge, bullet, powder, and components. Pressure signs must be checked every time a group is fired. A good group, low SD, or high velocity never overrides pressure.
Three cross-sections comparing an unfired primer, a fired primer with rounded edges retained and a firing-pin indentation, and a flattened and cratered primer. Primer appearance alone does not establish safe or unsafe pressure. Illustration showing two examples of ejector marks and swipes on a case head, with contrast enhanced for visibility. Cutaway illustration of the case, chamber, extractor, and bolt face accompanying the sticky and heavy bolt lift explanation.
Pressure doctrine
Use verified load data
Start with trusted published rifle load data for your cartridge, bullet, powder, and components. Do not build powder charges from memory, forum advice, or a similar cartridge. Record the source before loading.
Pressure is a gate, not a score
Qual8 uses pressure signs to decide whether a charge remains available for future cycles. Accuracy and velocity can help describe a load, but they cannot make an unsafe pressure condition acceptable. A tight group at unsafe pressure is not a good load.
Check pressure after every group
In Qual8, each group should be reviewed for pressure before the result is used. If no signs are observed, the shooter records "No pressure signs observed." If any sign appears, the shooter records the highest matching pressure level so Qual8 can limit future recommendations.
Pressure levels
Record the highest matching level observed after inspecting the fired case and bolt lift.
L0
No pressure signs observed
No pressure signs were observed after inspecting the fired case and bolt lift.
L1
Primer watch
Flattened or cratered primers. Qual8 treats this as a watch condition in V1.
L2
Pressure ceiling
Ejector marks or swipe marks. Qual8 sets a hard powder ceiling at this charge.
L3
Sticky bolt
Sticky bolt lift. Qual8 retreats one case-capacity powder step and does not recommend climbing from that charge.
L4
Hard pressure stop
Very hard bolt lift or bolt lift requiring significant force. Qual8 stops the higher-charge path and retreats two case-capacity powder steps.
Stop condition
If pressure signs appear
Stop increasing powder charge. Do not fire planned higher-charge groups. Record the pressure sign in Qual8 before continuing. Future recommendations must stay inside the updated pressure ceiling.
Powder window reviews
Qual8 may ask you to review powder windows or charge weights that look unusual for the cartridge case capacity. These checks are designed to catch input mistakes and abnormal source windows. Passing a review does not mean the load is safe; pressure signs still control the workflow.
Bench 5 connection
Powder charge is the primary driver of pressure. Bench 5 exists to control charge weight, verify the powder source, confirm the scale, and keep every charged case consistent before seating.

For charge setup and charged-case verification, review Bench 5 Safety.
Review Bench 5 Safety
Logbook Record Layer

- Powder brand, type, and lot number
- Target charge weight and actual average achieved
- Scale used and zero-check result
- Any charges flagged and re-thrown
- Bench date and Qual8 session number
