Resizing
Restore cartridge geometry after firing. Every round starts here.
Start every resizing session with a clean resizing die. Apply a thin, even coat of case lube to the outside of each case. Too little lube can stick a case in the die. Too much lube can dent the shoulder.

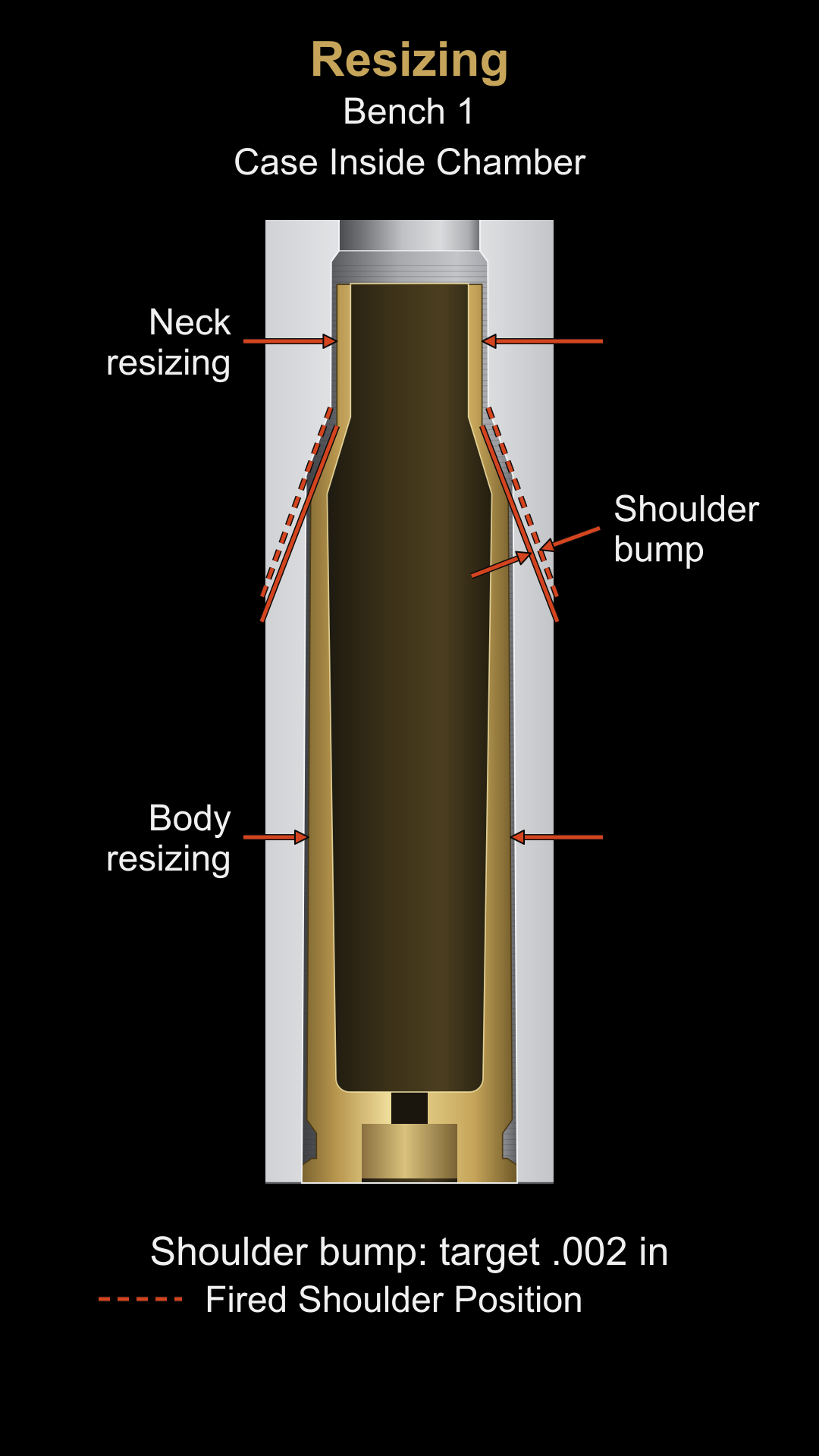

A full-length resizing die reforms the case body, shoulder, and neck back toward SAAMI spec. On the first lubed case after cleaning or setting up the die, run the case only partway in and feel the resistance. Never force brass into a resizing die. If force climbs, back it out, add a light layer of lube to the case body, and try again. Once the die is seasoned and the case moves smoothly, resize normally. Run each case fully into the die until the shellholder contacts the die body. Consistent contact means consistent results.
After resizing, remove the case from the die and wipe excess lube from the case body and shoulder. Finished ammunition should not carry case lube into the chamber. Ensure the brass is clean before it moves forward in the workflow. Some reloaders tumble or polish resized brass, but Sigma8 treats that as optional. Sigma8 has not found it to increase accuracy; it is mainly a cleanliness and appearance step, as long as no media is left in the case or flash hole.
Inspect each resized case before it moves to Bench 2. Look for neck cracks, split case mouths, deep shoulder dents, bright rings near the case head, or any mark that suggests the case is no longer trustworthy. Questionable brass gets pulled from the batch.

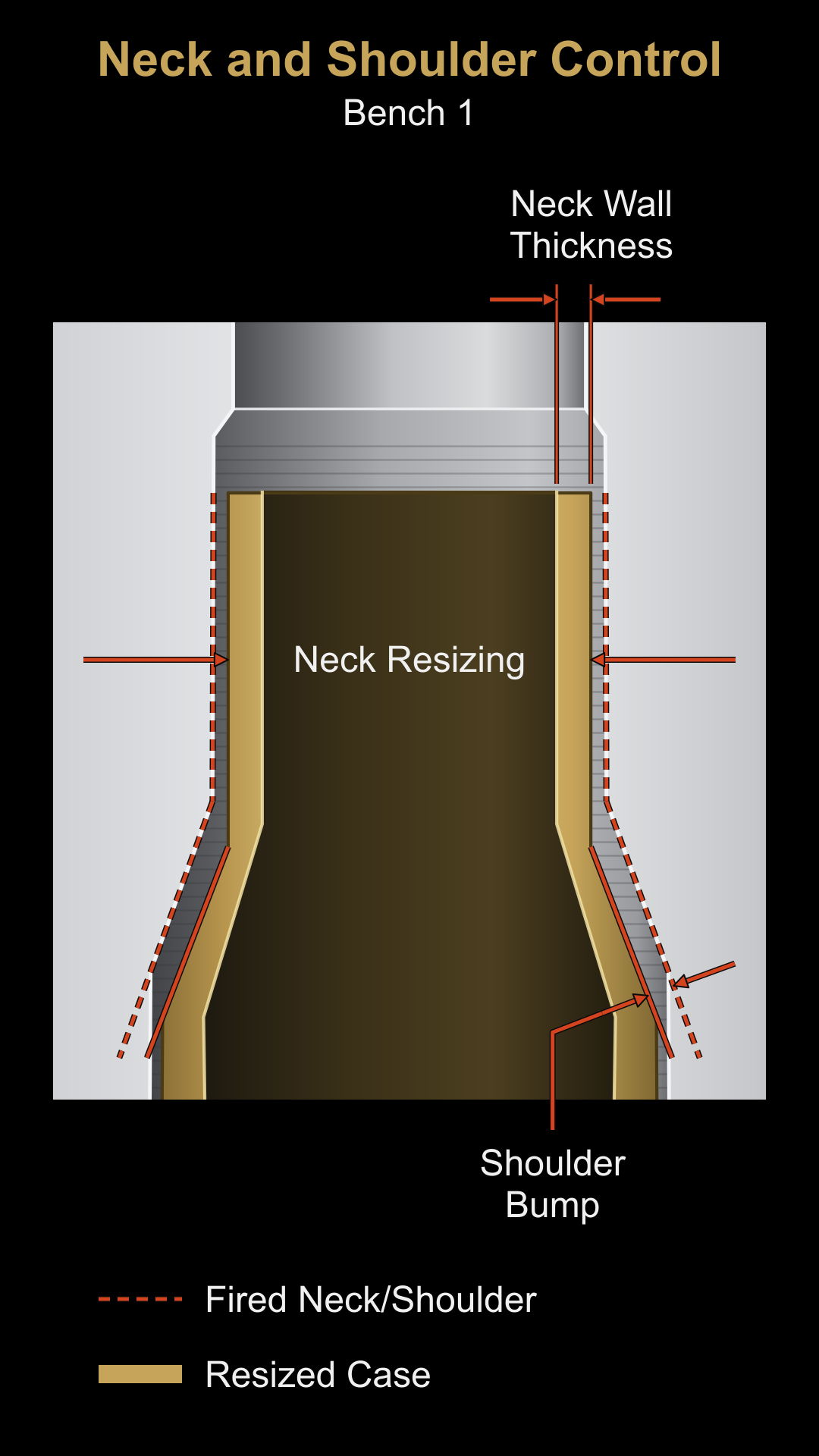

SAAMI resizing is the simple baseline: full-length resize with a standard shellholder and firm press/die contact. It is safe, repeatable, and low friction, but it is not matched to the exact chamber in your rifle. Precision shoulder control measures how far the case shoulder moves during resizing. Measure the fired case shoulder with a comparator, resize the brass, then measure the resized shoulder.
A typical Sigma8 starting target is 0.002" shoulder bump. Too little bump can cause hard bolt close or inconsistent chambering. Too much bump overworks the brass, shortens case life, and makes the case fit the chamber less consistently.
The case neck holds the bullet. Standard dies resize the neck according to the die design. Neck bushing dies let the shooter control resized neck diameter more deliberately. For bushing control, measure neck wall thickness at several points on several cases from the same brass lot. Record the thinnest and thickest values, choose a desired neck tension, and calculate the starting neck bushing target.
Because bushings are normally selected in 0.001" increments, Qual8 favors the next smaller available bushing when the calculation lands between two bushing diameters.
The bushing diameter is the tool setting. The actual resized neck diameter is the result. After resizing, measure the outside neck diameter at several points around several cases from the same lot. If the resized neck measures larger than the bushing, the brass is springing back after leaving the die.
If springback is 0.001" or more, the brass may not be responding consistently. Annealing can reduce springback variation, but it can also change which bushing gives the desired result.
Bench 1 controls the empty case. Bench 7 checks the finished round. After the bullet is seated, loaded-round neck diameter gives the practical audit of bullet diameter, neck wall thickness, resized neck diameter, and actual bullet grip.
Bench 1 sets the control target. Bench 7 proves what the finished ammunition actually became.
Bench 1 neck-tension tuning is not included in Qual8 V1. In V1, neck tension is treated as a control point: choose a target, measure it, verify it, and hold it constant. Sigma8 may eventually support neck tension as a tune variable, but the launch workflow is built around controlling it well enough that it stops becoming noise in the data.
Sigma8 does not believe most precision-minded hunters using hunting-weight rifles need to tune neck tension as a dedicated standalone variable. In real hunting conditions, field position, wind, terrain, rifle weight, heart rate, time pressure, and the animal itself will usually mask any tiny gain that might be isolated from neck-tension tuning on a bench rifle. For hunting rifles, the better answer is simple: control neck tension so it is consistent, then focus attention on variables that matter more in the field.
What to record at Bench 1
Shoulder control mode, fired shoulder reference, resized shoulder measurement, verified shoulder bump, neck-control style, neck wall min/max, desired neck tension, calculated neck bushing target, any bushing override, actual resized neck diameter, springback observations, and any anomalies such as stuck cases, dents, or unusual resistance. This data feeds Bench 7.
